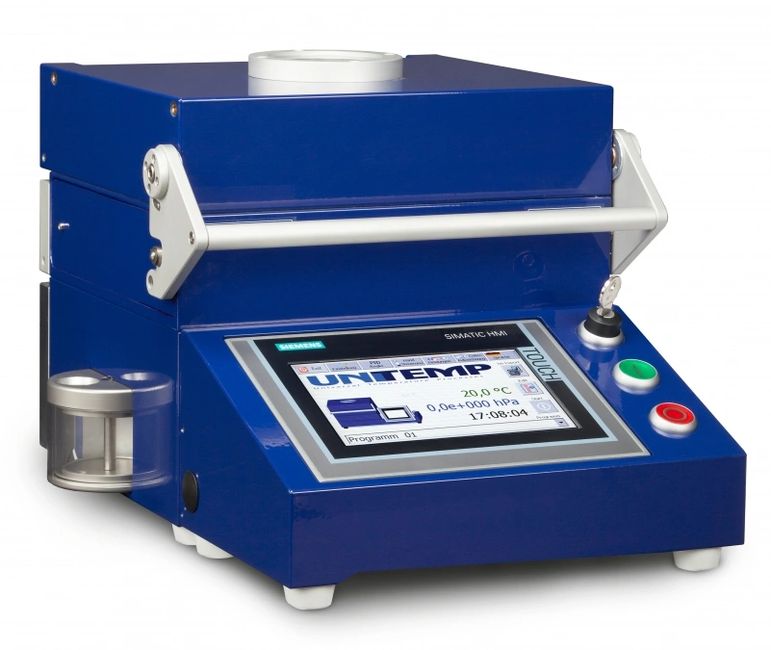

The RSS-210-S Reflow Solder System is a very compact and easy useable tool for the use in laboratories and clean rooms as table top unit. The chamber is vacuum sealed and equipped with a viewing window. This allows the view control of the soldering process. The unit is standard equipped with a Mass Flow Controller for the process gas.
The reflow solder system is perfect for the following applications:
- flux-less soldering
- flip chip process
- adhesive bonding
- solder bump reflowing
- encapsulation of housings
- soldering of power devices
- heat treatment of semiconductor wafers
- prototype development
- quality control
Technical Data:
- heated area: 210 mm x 210 mm (= model RSS-110-S)
- chamber height: 60 mm (optional up to 80 mm)
- viewing window with 60 mm dia.
- Mass Flow controller for Nitrogen (5 nlm)
- vacuum atmosphere up to 10exp.-3 hPa (KF16 connector)
- temperature up to 400 °C (optional up to 500 °C)
- ramp up rate: better 240 K/minute
- ramp down rate: better 120 K/minute
- SIMATIC© process control with 50 programs and 50 steps each
- 7″ touch panel
- water cooled chamber (controlled and watched)
- electrical connection type: 230V, 9 kW or 115V, 7 kW
